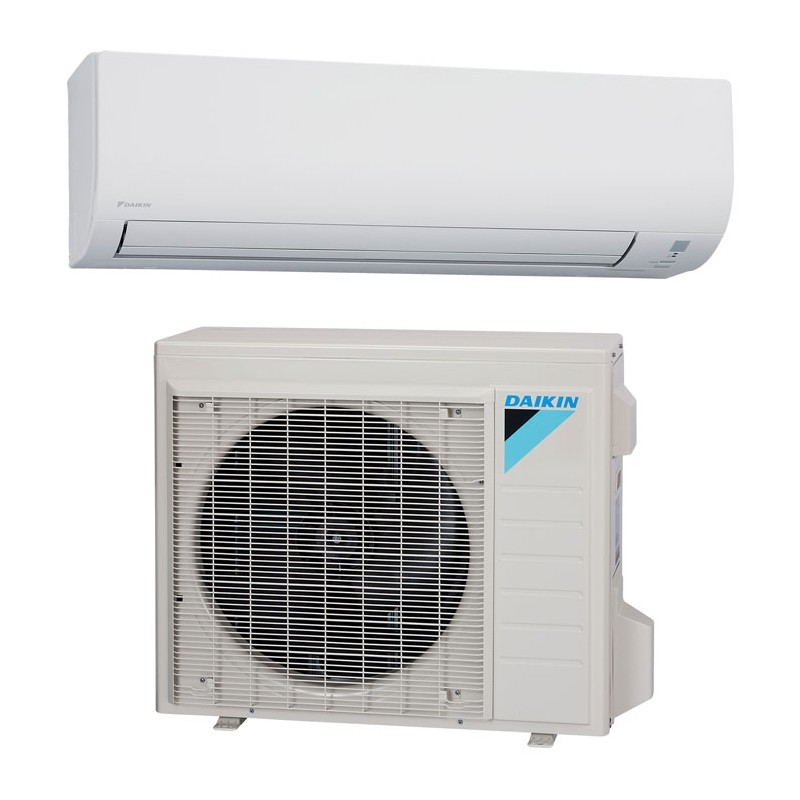

Daikin 24,000 btu 15 SEER Heat Pump & Air Conditioner Ductless Mini Split FTXN24NMVJU / RXN24NMVJU

SYSTEM PERFORMANCE

Indoor Unit Model No. FTXN24NMVJU Indoor Unit Name: 15 SEER HP DUCTLESS ID 2 TON

Outdoor Unit Model No. RXN24NMVJU Outdoor Unit Name: 15 SEER HP DUCTLESS OD 2 TON

Rated Cooling Capacity (Btu/hr): 22,000

Rated Cooling Conditions:

Indoor (°F DB/WB): 80 / 67

Ambient (°F DB/WB): 95 / 75

Sensible Capacity (Btu/hr): 16,120

Rated Piping Length(ft): 25

Max/Min Cooling Capacity (Btu/hr): 23,000 / 5,100

Rated Height Difference (ft): 65.60

Cooling Input Power (kW): 2.400

Rated Heating Conditions:

Indoor (°F DB/WB): 70 / 70

Ambient (°F DB/WB): 47 / 43

SEER: 15.00 / HSPF: 8.2

EER: 9.20 / Heating COP: 3.6

Rated Heating Capacity (Btu/hr): 22,000

Max/Min Heating Capacity (Btu/hr): 25,400 / 5,100

Heating Input Power (kW): 1.79

Ambient (°F DB/WB): 95 / 75
